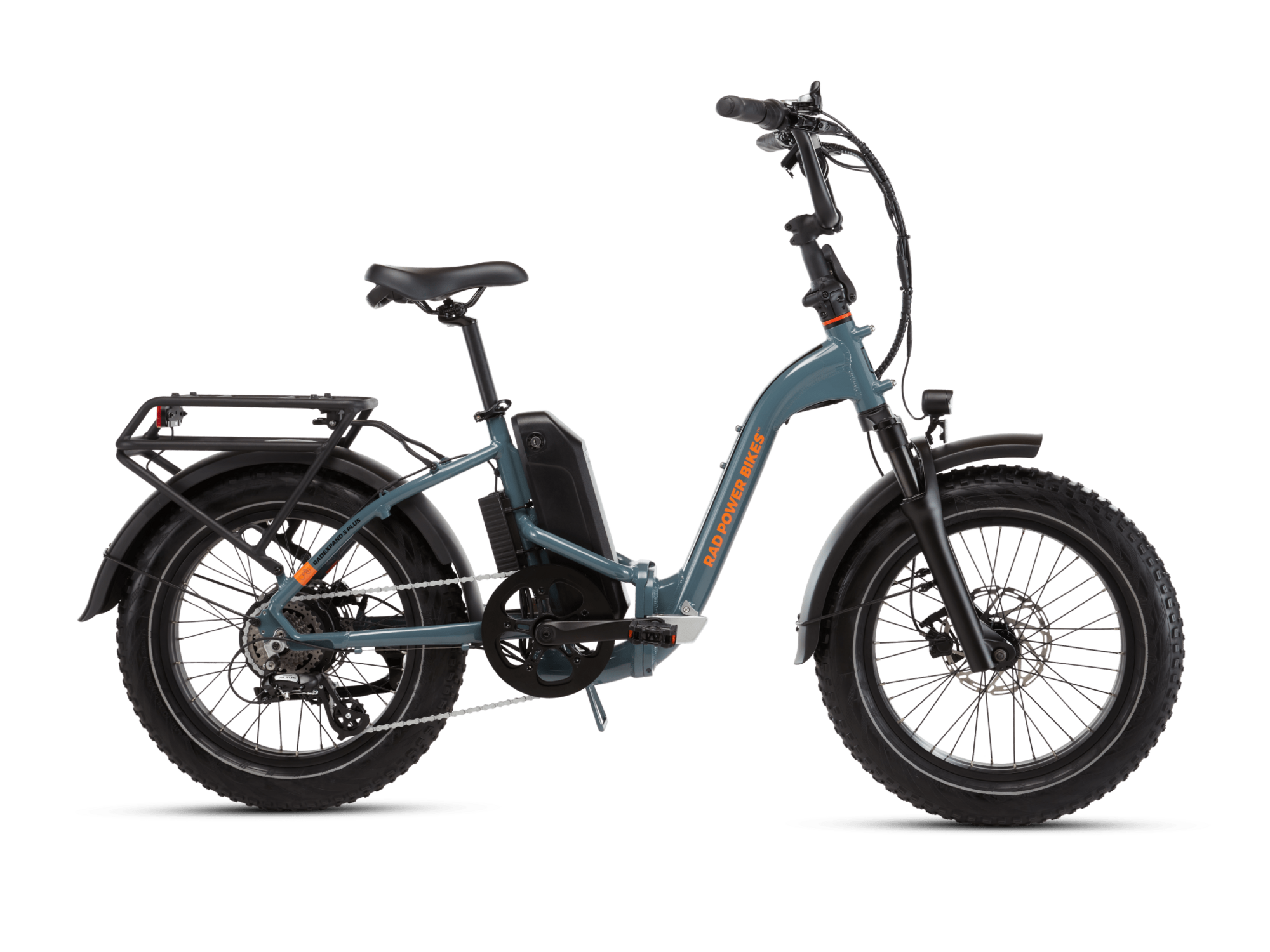

Rad Power Bikes RadExpand 5 Plus Electric Folding Bike
Details
Disclaimer: Please note that Rad Power bikes are not eligible for out-of-market transfer. If you purchase a bike that is not available in your market, your order will be canceled, to avoid this please call your local store before ordering.
We’ve taken the classic RadExpand folding bike and enhanced it with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front suspension fork, and enjoy smoother rides wherever you wander with the all-new torque sensor that responds to the way you ride.
- Range: Up to 60 miles
- Payload: 315 lb. (225 lb. max rider)
- Top speed: Class 1 & 2: Up to 20 mph
- Motor: 750W Geared Hub, 64 Nm torque
- UL status: UL Certified to UL 2849 and UL 2271
- Battery type: 15Ah Safe Shield External Battery
| Rider Heights | 4'10"-5'10" (147-178 cm) |
|---|---|
| Bike Weight | 72.5 lb (32.9 kg), 62.5 lb (28.3 kg) with battery removed |
| Payload | 315 lb, 225 lb max rider weight |
| Rear Rack Payload | 59 lb (27 kg) |
| Folded Dimensions | 29"H x 25"W x 41"L |
| Handlebar Height | 43.5" (110.4 cm) |
| Reach | 17.9" (455 mm) |
| Seat Height | From ground: 31" - 38" (78.7 - 96.5 cm)/From pedal bottom stroke: 26" - 33" (66 - 84 cm) |
| Standover Height | 16.5" (41.9 cm) |
| Stepover Height | 16" (40.6 cm) |
| Total Length | 68" (172.7 cm) |
| Wheelbase | 44.5" (113 cm) |
| Seat Tube Length | 14.2" (360 mm) |
Specs
| Motor | Rear hub 350W, 64 Nm torque Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
|---|---|
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding |
| Battery | 15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271 |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Controller/Display | Rad custom color display. See Display section below for details. |
| Fork | Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle |
| Stem | Folding stem raiser with 45mm A-Head stem |
| Frame | Aluminum |
| Tires | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Brakes | Hydraulic Disc, Gemma GA-1000B |
| Saddle | Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides |
| Crankset | 48T with dual sided chain ring cover, 170mm crank arms |
| Seatpost | 390 mm x 27.2 mm |
| Handlebars | Aluminum, 680 mm wide |
| Tape/Grips | Ergonomic rubber comfort grips |
| Accessories & Extras |
Auto-on feature Front: ~200 lumens LED headlight with built-in reflector Rear: Integrated taillight with brake light and turn signals |
| Cassette/Freewheel | 7-speed freewheel, 14-32T |
| Rear Derailleur | 7 speed Shimano |
| Shifters | Shimano 7-speed thumb shifter |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Slate Blue / All Models Not Available In All Markets / One Size / 20-inch | 850066859247 | 103-00056 | 210000152090 |
