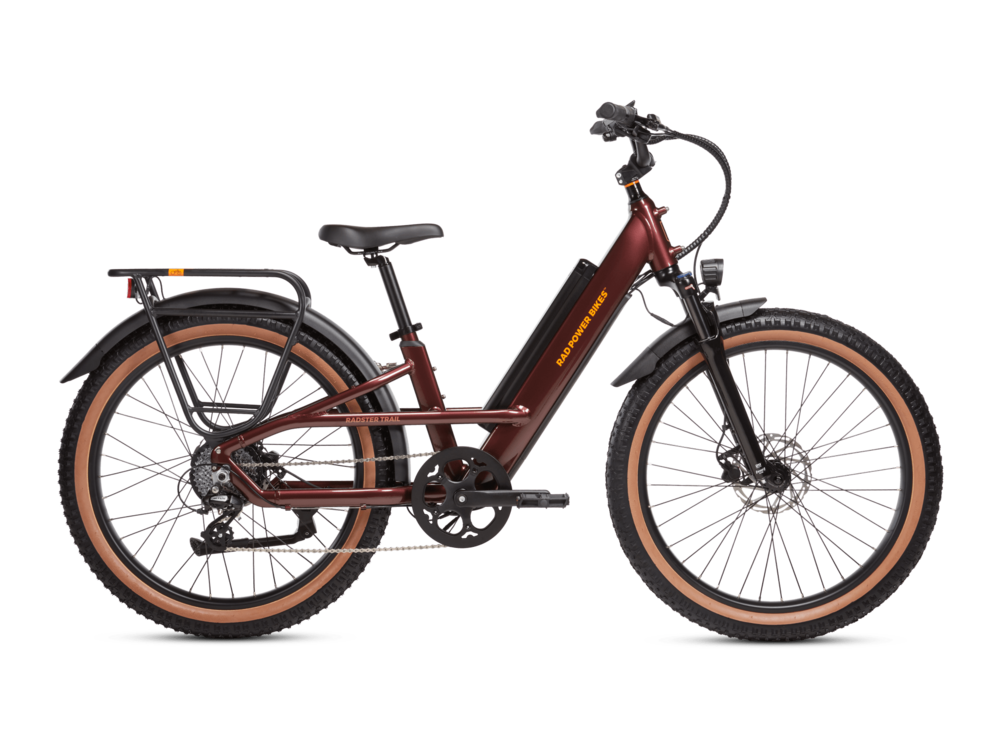

Rad Power Bikes Radster Trail Electric Off-Road Bike - Regular
Details
Disclaimer: Please note that Rad Power bikes are not eligible for out-of-market transfer. If you purchase a bike that is not available in your market, your order will be canceled, to avoid this please call your local store before ordering.
We’ve slimmed down Rad’s classic fat tires for a sportier off-road experience, and upped the torque for faster hill-climbing. Enjoy up to 65 miles of range per charge, class-3 capabilities, and controls that lock with a personalized passcode.
- Range: Up to 65 miles
- Payload: 370 lb. (290 lb. max rider)
- Top speed: Class 1 & 2: Up to 20 mphClass 3 (limited): Up to 25 mphClass 3: Up to 28 mph
- Motor: 750W Geared Hub, 100 Nm torque
- UL status: UL Certified to UL-2849 and UL-2271
- Battery type: 15 Ah Safe Shield Semi-Integrated Battery
| Rider Heights | 4'11"-5'8" (150-173 cm) |
|---|---|
| Bike Weight | 77.5 lb (35.2 kg), 68.5 lb (31.1 kg) with battery removed |
| Payload | 370 lb, 290 lb. max rider |
| Rear Rack Payload | 55 lb (25 kg) |
| Handlebar Height | 44.5" (113.0 cm) |
| Reach | 15.2" (386 mm) |
| Seat Height | From ground: 30.5" - 37.5" (78.7 - 95.3 cm)/From pedal bottom stroke: 25" - 33" (64 - 84 cm) |
| Standover Height | 21" (53.3 cm) |
| Stepover Height | 20" (50.8 cm) |
| Total Length | 74" (188 cm) |
| Wheelbase | 46.6" (118.3 cm) |
| Seat Tube Length | 15.0" (380 mm) |
Specs
| Pedals | Alloy Platform, Boron axle with reflectors, standard 9/16" X 20 TPI threading |
|---|---|
| Motor | Rear hub 750W, 100 Nm torque Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
| Battery | 15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271 |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Controller/Display | Rad custom color display. See Display section below for details. |
| Fork | SR Suntour hydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle |
| Stem | 40mm A-head |
| Frame | Aluminum |
| Tires | Kenda Havok 27.5" X 3.0" with puncture protection and tan sidewall |
| Brakes | Tektro Hydraulic Disc E350 |
| Saddle | Padded sport saddle with shallow anatomic cut-out and contoured sides |
| Crankset | 50T with dual sided chain ring cover, 170mm crank arms |
| Seatpost |
Regular: 350 mm x 31.6 mm Large: 400 mm x 31.6 mm |
| Shifters | Shimano 8-speed thumb shifter |
| Handlebars | Aluminum, 710mm wide |
| Tape/Grips | Ergonomic rubber comfort grips |
| Rear Derailleur | Shimano 8-speed |
| Accessories & Extras |
Auto-on feature Front: ~200 lumens LED headlight with built-in reflector Rear: Integrated taillight with brake light and turn signals |
| Cassette/Freewheel | 8-speed freewheel 11-34T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Copper Red / All Models Not Available In All Markets / Regular / 27.5-inch | 850066859179 | 109-00005 | 210000152103 |
| Fir Green / All Models Not Available In All Markets / Regular / 27.5-inch | 850066859148 | 109-00001 | 210000152099 |
